管法兰碳钢卧式环缝焊接机

Pipe flange carbon steel horizontal girth welding machine

管法兰卧式环缝焊接机应用于法兰环缝，效率高，可以应用于管管对接，管法兰对接，管弯头，不锈钢，碳钢，金属筒体焊接，汽车配件，热水器加工，阀门，五金，电器等行业设备。 环缝焊接专机适用于碳钢环缝自动焊接，焊缝外观美观，焊缝宽，余高均匀。

The horizontal circumferential seam welding machine for pipe flange is applied to the circumferential seam of flange with high efficiency. It can be applied to pipe butt joint, pipe flange butt joint, pipe elbow, stainless steel, carbon steel, metal cylinder welding, auto parts, water heater processing, valves, hardware, electrical appliances and other industrial equipment. The girth welding machine is suitable for automatic welding of carbon steel girth, with beautiful weld appearance, wide weld and uniform reinforcement.

采用三轴数控系统，焊枪过程中的三轴联动，控制焊枪走出相应轨迹。焊枪电流及电压可预存及分段调用 。采用PLC控制整机运行，控制焊枪气动进给，工件晃动装及规范切换等。焊枪移动通过交流伺服电机驱动滚珠丝杆实现，由直线导轨导向。焊缝变形小，焊缝牢固。

The three-axis CNC system is used to control the welding gun to go out of the corresponding track. Welding torch current and voltage can be pre stored and called in sections. PLC is used to control the operation of the whole machine, control the pneumatic feed of welding gun, workpiece shaking, loading and standard switching, etc. The movement of the welding gun is realized by the ball screw driven by the AC servo motor and guided by the linear guide rail. The weld deformation is small and the weld is firm.

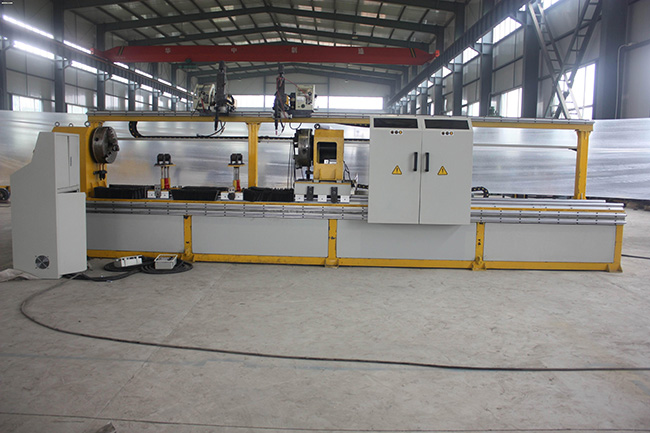

焊接机采用卧式结构，主要由床头箱有回转驱动电机，气动尾座，焊枪移动机构，焊枪微调调整机构和焊枪气动升降机构，电气控制系统等构成。床身对整套设备及工件起支承，连接作用。床头箱机架为箱形结构件，采用型材及钢板等焊接后退火处理，再进行精加工，保证床头箱及气动尾座重合，具有重量轻，强度高，刚度大，稳定性好等优势。

The welding machine adopts horizontal structure, which is mainly composed of headbox, rotary drive motor, pneumatic tailstock, welding gun moving mechanism, welding gun fine-tuning adjustment mechanism, welding gun pneumatic lifting mechanism, electrical control system, etc. The bed supports and connects the whole set of equipment and workpieces. The headbox frame is a box structure, which is annealed after welding with profiles and steel plates, and then finished to ensure the coincidence of headbox and Pneumatic Tailstock. It has the advantages of light weight, high strength, high stiffness and good stability.

具体可以根据客户工件要求定做！

Specific parts can be customized according to customer requirements!
